Defender Emergency

3F Filippi

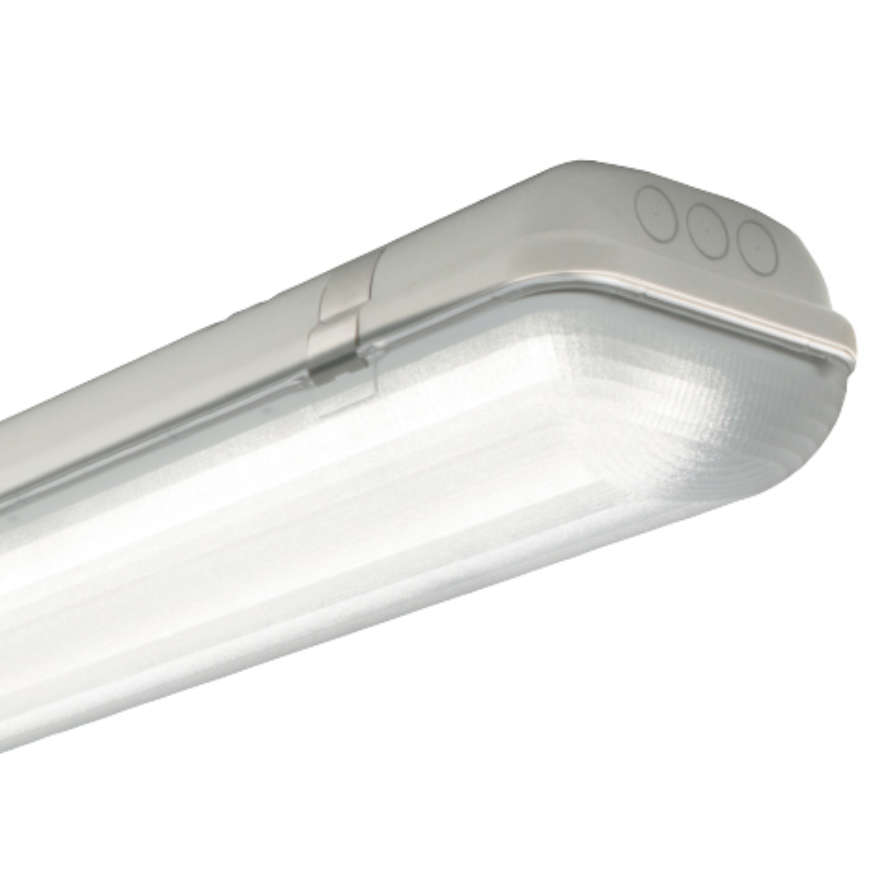

Mod 3F Linda Led Ampio
An industrial AS/NZS 2293 compliant underverandah offering exceptional performance and strength
Downloads
Download all
Contractor product files (3)
Download ZIP - 2.03 MB
Specifier product files (15)
Download ZIP - 2.73 MB

APPLICATION

  • Suitable for diffuse direct/indirect lighting in car parks, stairwells, storage rooms & switchboard rooms

SIZES (L x W x H)

  • 660 x 160 x 100 mm
  • 1270 x 160 x 100 mm
  • 1570 x 100 x 100 mm
  • 1570 x 160 x 100 mm

MOUNTING

  • Ceiling, Suspended and Wall


LIGHT SOURCE LED OPTICAL SYSTEM

  • Linear LED modules
  • Colour rendering index CRI >80
  • Nominal colour temperature 4000K, other colour temperatures available

WIRING

  • Electronic wiring 230V-50/60Hz

VARIATIONS

  • LED sources with different colour temperatures
  • Linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology

MATERIALS

  • Self extinguishing V2 polycarbonate

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours / L85 / B10

AMBIENT OPERATING TEMPERATURE

  • From -25 °C to +30 °C


Read more
Specifications
  • Lumen Output: 462lm - 534lm
  • Lifetime: 50,000hrs L85 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Applications
Brand Website
Make an enquiry
Our Products (4)
58572EM
Description 3F Defender Linda LED 2x12W L660 EM
Wattage 4W
Lumen Output 462lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 660mm x 160mm x 100mm
Weight 2.1kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58594EM
Description 3F Defender Linda LED 2x24W L1270 EM
Wattage 4W
Lumen Output 495lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1260mm x 160mm x 100mm
Weight 2.8kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58605EM
Description 3F Defender Linda LED 1x30W L1570 EM
Wattage 4W
Lumen Output 534lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Weight 2.5kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58616EM
Description 3F Defender Linda LED 2x30W L1570 EM
Wattage 4W
Lumen Output 518lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 160mm x 100mm
Weight 3.4kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating UGR Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Product Kit
58572EM 3F Defender Linda LED 2x12W L660 EM 4W 462lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 660mm x 160mm x 100mm 2.1kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58594EM 3F Defender Linda LED 2x24W L1270 EM 4W 495lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1260mm x 160mm x 100mm 2.8kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58605EM 3F Defender Linda LED 1x30W L1570 EM 4W 534lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 100mm x 100mm 2.5kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58616EM 3F Defender Linda LED 2x30W L1570 EM 4W 518lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 160mm x 100mm 3.4kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
Show all products
Accessories
Order Code Description
A0160
 Inox clips 3F Linda L660-4pcs
A0161
 Inox clips 3F Linda L1270-8pcs
A0162
 Inox clips 3F LindaL1570-10pcs
A0449
 15 GZI w/brack. LindaL300-2pcs
A0450
 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
 15 MBI (w/brack. Linda L300)-2pcs
A0452
 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
 13 GSI (pair of susp. hooks Linda L300)
A0463
 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
A0160
Description Inox clips 3F Linda L660-4pcs
A0161
Description Inox clips 3F Linda L1270-8pcs
A0162
Description Inox clips 3F LindaL1570-10pcs
A0449
Description 15 GZI w/brack. LindaL300-2pcs
A0450
Description 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
Description 15 MBI (w/brack. Linda L300)-2pcs
A0452
Description 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
Description 13 GSI (pair of susp. hooks Linda L300)
A0463
Description 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
