RX Basic Bulkhead Tri-Colour

RX Lighting
Rx Ip54 Round Black
Rx Ip54 Round Black 2
Rx Ip54 Bl Ack 2
Rx Ip54 Black
Rx Ip54 White
Rx Ip54 White 2
Rx Ip54 Round White
Rx Ip54 Round White 2
Available in 8W or 12W in Oval or 12W in round in both White or Black. 3000K, 4000K & 5000K
Downloads
Download all
Contractor product files (1)
Download ZIP - 642.9 KB
Specifier product files (11)
Download ZIP - 2.59 MB

APPLICATION

  • Home, school

SIZES ( L , W & H )

  • 230 x 105 x 57 mm
  • 200 x 100 x 57 mm
  • 211 x 211 x 57 mm

MOUNTING

  • Surface & wall mount

MATERIALS

  • Poly carbonate

SURFACE FINISH

  • Black or White

SERVICE LIFETIME (TA=25°C)

  • 25,000 hours L70 B10

Available to purchase through the Ideal Electrical Site

Specifications
  • Lumen Output: 791lm - 811lm
  • Lifetime: 25,000hrs L70 B10
  • IP Rating: IP54
  • IK Rating: IK08
Applications
Make an enquiry
Our Products (3)
REXBHD120VCCT
Description RX Basic bulkhead LED oval CCT 12W non-dimmable white or black tri-colour
Wattage 12W
Lumen Output 950lm
CCT 3000K 4000K 5000K
CRI 80
Service Lifetime 25,000 hours L70 B10
IP Rating IP54
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.9
Connection Direct
Body colour/Options Black
Dimensions (LxWxH) 230mm x 105mm x 57mm
Mounting Surface
Materials Poly carbonate
Photometry Download
View all specs Hide all specs
REXBHD12RDCCT
Description RX Basic bulkhead LED round CCT 12W non-dimmable white or black tri-colour
Wattage 12W
Lumen Output 950lm
CCT 3000K 4000K 5000K
CRI 80
Service Lifetime 25,000 hours L70 B10
IP Rating IP54
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.9
Connection Direct
Body colour/Options Black
Dimensions (LxWxH) 211mm x 211mm x 57mm
Mounting Surface
Materials Poly carbonate
Photometry Download
View all specs Hide all specs
REXBHD8OVCCT
Description RX Basic bulkhead LED oval CCT 8W non-dimmable white or black tri-colour
Wattage 8W
Lumen Output 650lm
CCT 3000K 4000K 5000K
CRI 80
Service Lifetime 25,000 hours L70 B10
IP Rating IP54
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.9
Connection Direct
Body colour/Options Black
Dimensions (LxWxH) 230mm x 105mm x 57mm
Mounting Surface
Materials Poly carbonate
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Mounting Materials Photometry Product Kit
REXBHD120VCCT RX Basic bulkhead LED oval CCT 12W non-dimmable white or black tri-colour 12W 950lm 3000K 4000K 5000K 80 25,000 hours L70 B10 IP54 Electronic fixed output 0.9 Direct Black 230mm x 105mm x 57mm Surface Poly carbonate View Kit
REXBHD12RDCCT RX Basic bulkhead LED round CCT 12W non-dimmable white or black tri-colour 12W 950lm 3000K 4000K 5000K 80 25,000 hours L70 B10 IP54 Electronic fixed output 0.9 Direct Black 211mm x 211mm x 57mm Surface Poly carbonate View Kit
REXBHD8OVCCT RX Basic bulkhead LED oval CCT 8W non-dimmable white or black tri-colour 8W 650lm 3000K 4000K 5000K 80 25,000 hours L70 B10 IP54 Electronic fixed output 0.9 Direct Black 230mm x 105mm x 57mm Surface Poly carbonate View Kit
Show all products

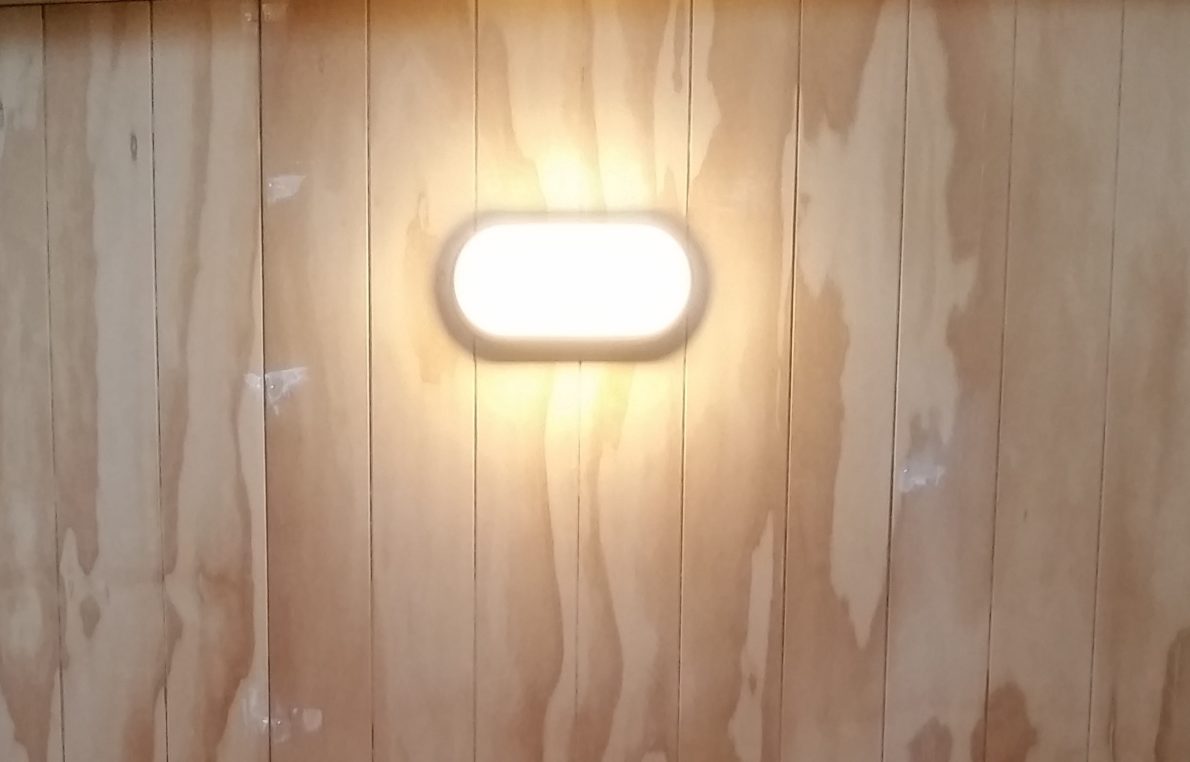

Installation images
RX Basic bulkhead
